In a broad sense, a spreader is a device that can spread materials to the ground or air through its operation. In a narrow sense, it mainly refers to equipment used for spreading snow melting agents, deicing agents and other granular or powdery materials. By snow and ice removal function, it can be divided into snow melting agent spreaders and liquid spreaders; by power and drive mode, it can be divided into engine-driven spreaders and hydraulic-driven spreaders.

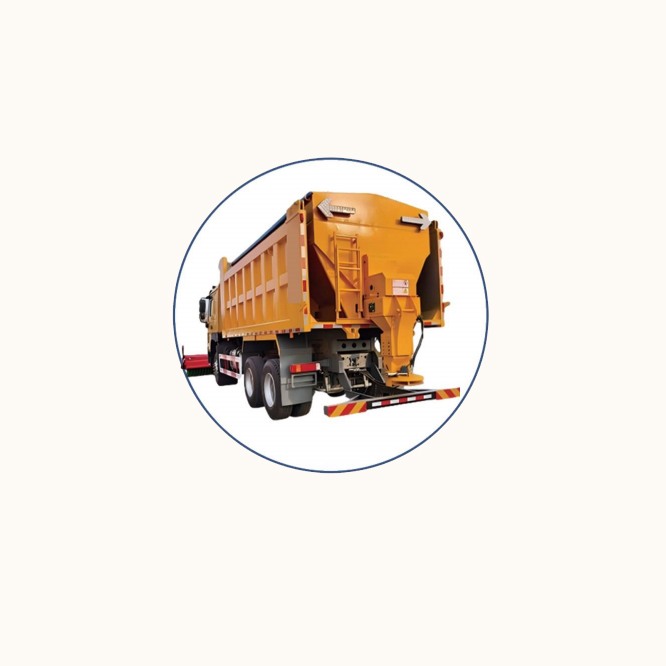

Snow melting agent spreaders are efficient maintenance equipment for snow melting, ice melting and spreading melting agents (salt) in modern urban sanitation, high-grade highways, urban roads, airports, squares and scenic spots. The spreader is detachable, which is convenient for the vehicle to be used for other purposes when not engaged in snow removal operations. A centralized spread control system is installed in the driver's cab, and all spread operation controls are completed in the driver's cab. The control system is equipped with a liquid crystal display, which can show operation status parameters. The salt spreading disk is made of stainless steel. The material tank is made of wear-resistant material and undergoes overall anti-corrosion treatment.
The SDMY-SBJ Spreader is jointly developed and produced by our company and Douglas (North America). The main hydraulic components, housings and mechanical parts are imported from the United States, which ensures the quality of the power unit, enhances corrosion resistance and achieves a high mechanical transmission ratio. Jointly developed with Douglas (North America), the equipment's volume capacity has been increased to better meet the snow removal needs of Chinese urban roads. The heightening plate added by our company is made of metal material, which provides strong strength assurance. The paint for the heightening plate is the paint formula provided by Douglas. The entire body of the heightening plate is sprayed with high-quality catalytic primer and finished with special orange paint for highways. The wire harness control system has a Chinese display, which is more in line with the operating habits of Chinese personnel.
Parameter Configuration Drive Engine: Single-cylinder air-cooled Engine Power: Gasoline 8.1kw / Diesel 6.3kw (with heating system for -40℃) Engine Model: Loncin 420 / Diesel 186FE Engine Displacement: 420CC / 418CC Engine Start Method: Electric start or manual start (optional) Engine Fuel Tank Capacity (L): 6.5 / 5.5 Engine Oil Capacity (L): 1.1L Snow Shovel Width (CM): 100cm Snow Shovel Overall Dimensions (CM): 1077055CM Snow Blower Width (CM): 110-150 (optional) Main Machine Overall Dimensions (CM): 1157191CM Machine Cleaning Thickness (CM): 10 Machine Snow Removal Efficiency (㎡/h): 4700 Machine Roller Brush Diameter (mm): 500 Machine Snow Throwing Distance (M): 10-15 Snow Outlet Rotation Angle: 180° Machine Gear Positions: 3 forward gears, 3 reverse gears Main Machine Net Weight: 125kg Machine Tire Model: 5.0-10 snow tires Snow Blower Packaging Dimensions: 1188766 Transmission Method: Full gear transmission Clutch Method: Dry-wet clutch Travel Speed: 1.5 / 3 / 4.5 Differential Mechanism: Equipped Functions: Optional snow sweeping, snow blowing, snow shoveling Seat: Optional (can be equipped) ...
Parameter Configuration Transmission Method: Friction drive Brush Details: Diameter 35cm, nylon material Engine: Loncin 6.5HP 196CC Brush Head Adjustment Angle: ±15 degrees Snow Removal Width/Depth: 80cm / 15cm Gear Positions: 5 forward gears, 2 reverse gears Fuel/Oil Capacity: 3.6L / 0.6L Working Time per Full Tank: Approximately 4 hours Gasoline/Oil Model: #92 gasoline / Antifreeze oil 5W-30 Tire Size: 13X4.10-6 snow tires Packaging Method: Wooden case, 1018571cm Functions: Optional snow sweeping, snow blowing, snow shoveling ...
Vehicle-Mounted Road Blower The vehicle-mounted road blower features an attractive appearance, low vibration, low noise, comfortable operation, low fuel consumption, large air volume and high cleaning efficiency. It saves time and effort, improves work efficiency, and is usually used with road sweepers. Equipped with a diesel engine, it is suitable for blowing operations on highways, national highways, provincial highways, etc. Product Structure Features Powered by well-known domestic brand engines with electric start. It has brand-quality assurance, excellent performance and easy starting. Self-designed centrifugal wind wheel with large air volume and high air pressure, ensuring thorough dust blowing. It can blow road gravels for about 10 meters. Adjustable wind direction. Fan Operation Precautions Before each operation, check whether the engine lubricating oil is at the specified level, whether the antifreeze is sufficient, and fill the diesel tank to full capacity. Turn on the main power switch, twist the key to the start position, turn the red emergency stop button on the remote control clockwise to release it, press the green start switch on the remote control, and press the engine start bu ...
The obstacle-avoidance snow shovel adopts a parallel four-link connection structure, allowing quick installation by one person. It is a fast-hitch snow removal machine, whose design is far ahead of domestic similar products. It features fast reset, which effectively reduces damage to road surfaces, road signs, road studs, manhole covers and other facilities. With a four-section shovel plate design, when one section encounters an obstacle and performs obstacle avoidance, it does not affect the snow removal of other shovel plates. At the same time, it avoids the risk of vehicle rollover caused by the impact of obstacles on the vehicle. The obstacle-avoidance snow shovel is equipped with a self-balancing device, suitable for any complex road surface. It always maintains good contact with the ground when working at high speed and easily handles obstacles such as manhole covers, curbs and bridge expansion joints. The obstacle-avoidance snow shovel can be conveniently and quickly installed on trucks, special-purpose vehicles and tractors with matching power to start snow removal operations. ...
Main Parameters and Configuration Product Model: SDMY-CXS Series Roller Brush Width (mm): 2500/3000/3500 Snow Removal Thickness (mm): ≤250 (Note: Adjusted from "s250" to the standard symbol "≤250" for "not more than" in technical parameters) Roller Brush Diameter (mm): 810 Motor Operating Speed (rpm): ≤280 (Note: Adjusted from "≤280" to maintain consistency with the snow removal thickness symbol) Left/Right Operating Angle (°): +/-30 Self-Balancing Swing Angle (°): +/-5 Motor Pressure (MPa): 18.5 Tire: Solid tire 315-8 Operating Speed (km/h): ≤30 Voltage: 12V/24V (optional) Brush Material: High-density polyethylene Motor Installation Method: Inline type ...
